FOR THOSE WHO STRIVE
Driven forward with a sense of purpose, your all-new Fortuner
is a statement of power you’ve earned.
is a statement of power you’ve earned.
performance
The newly developed 1GD engine provides exceptional accelerated performance that lets you face everyday hurdles with renewed confidence.
The NEW SIGMA 4 features speak dominance with every angle in a manner that is beyond comparison.
exterior

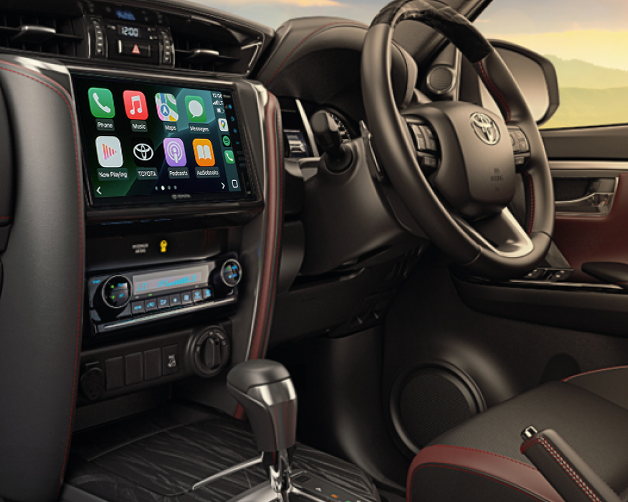

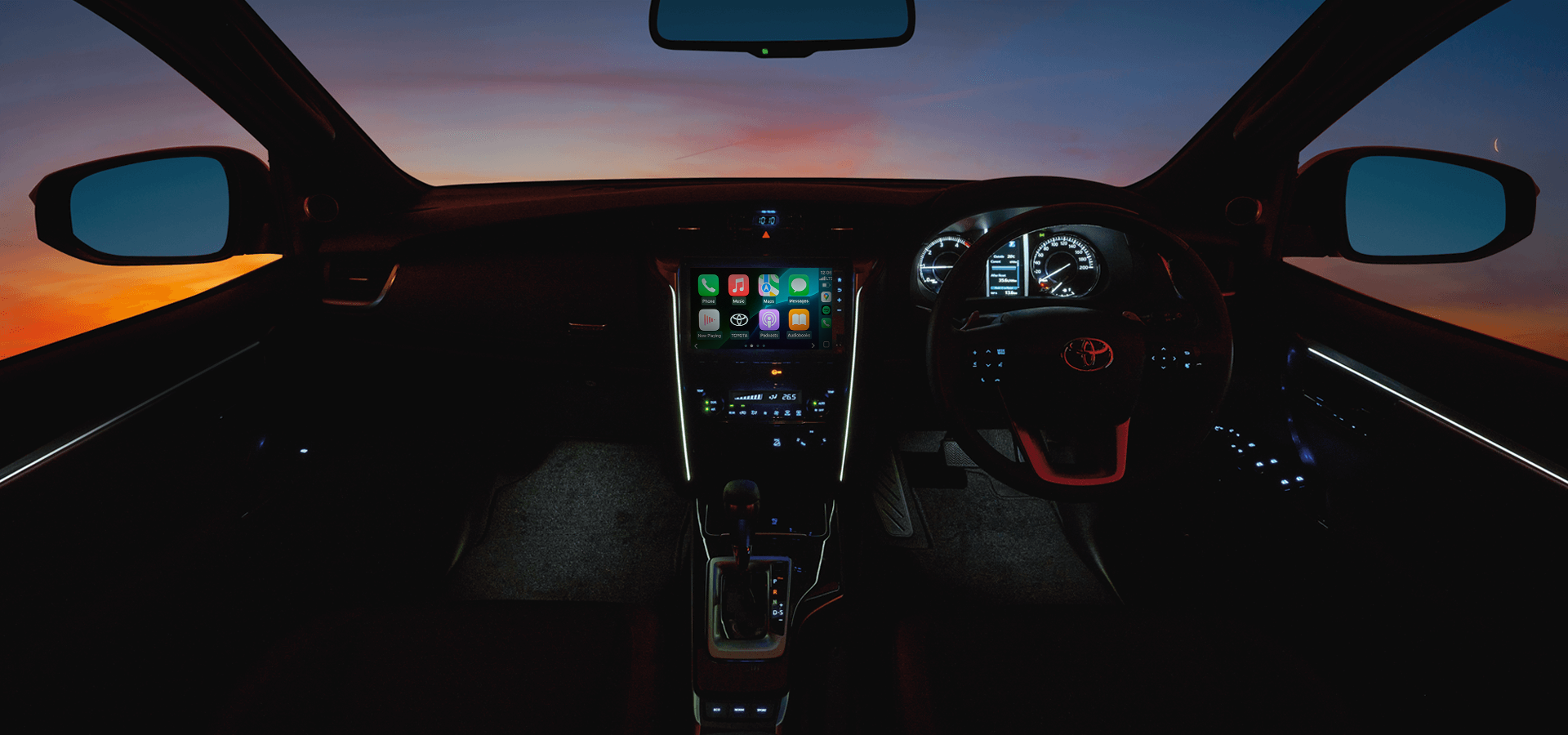

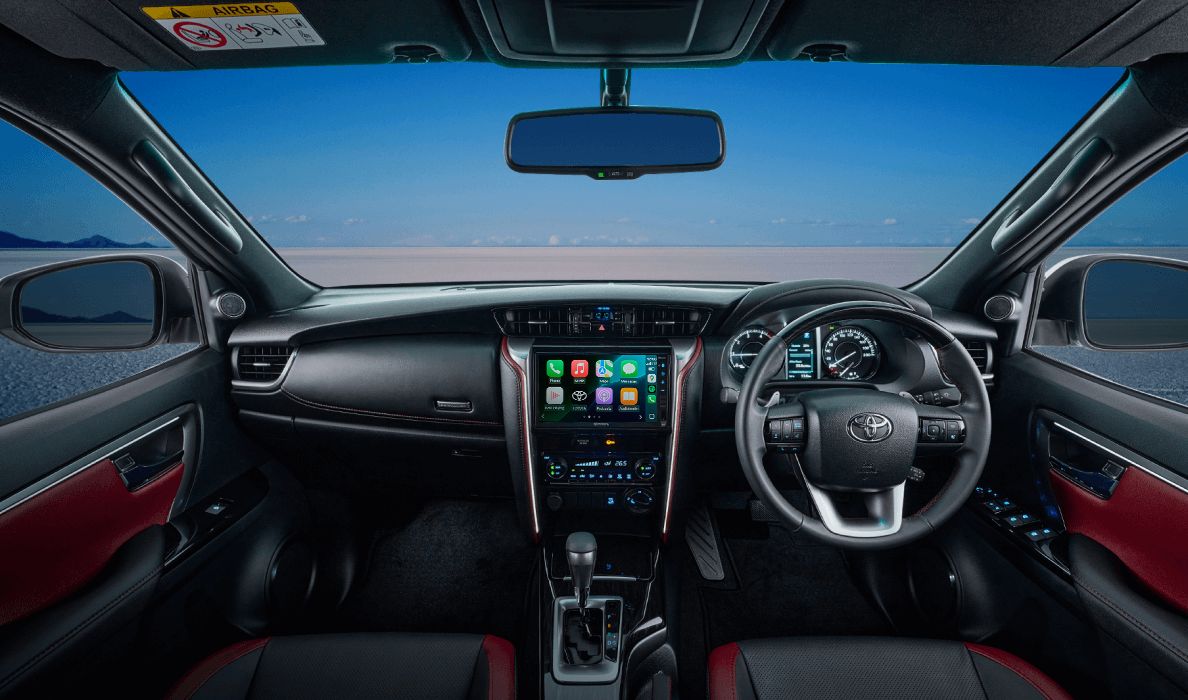

interior
storage
safety
exterior colors
FORTUNER SPECS SHEET
| VEHICLE | FORTUNER (4X4 Hi) | FORTUNER (4X2 Hi) | |
| MODEL CODE | GUN156R-SPTMHP | TGN166R-SPTSKP | |
| DIMENSIONS | |||
| Exterior | L x W x H (mm) | 4795 x 1855 x 1835 | 4795 x 1855 x 1835 |
| Wheelbase | (mm) | 2750 | 2750 |
| Tread | Front (mm) / Rear (mm) | 1540 / 1555 | 1540 / 1555 |
| Overhang | Front (mm) / Rear (mm) | 990 / 1060 | 990 / 1060 |
| Min. Running Ground Clearance | (mm) | 279 | 279 |
| Min. Turning Radius | Body (m) | 6.2 | 6.2 |
| Interior | L x W x H (mm) | 2478 x 1478 x 1105 | 2478 x 1478 x 1105 |
| Seating Capacity (persons) | 7 | 7 | |
| Gross Vehicle Weight | Total (kg) | 2735 | 2500 |
| Curb Weight | Min. Options (kg) | 2095 | 1835 |
| Fuel Tank Capacity | Total (L) | 80 | 80 |
| ENGINE SPECIFICATION | |||
| Engine Code | 1GD - FTV (Hi) | 2TR - FE | |
| Intercooler | O | X | |
| Displacement (cm3) | 2755 | 2694 | |
| No. of Cyls. & Arrangement | 4 cylinders, IN LINE | 4 cylinders, IN LINE | |
| Fuel System | COMMON - RAIL - DIESEL | SEQUENTIAL MULTIPORT FUEL INJECTION - PETROL | |
| Max. Output (kW @ rpm) | 130 @ 3400 | 122@5200 | |
| Max. Torque (N·m @ rpm) | 450 @ 1600 - 2400 | 245 @ 4000 | |
| PERFORMANCE | |||
| Transmission | Code | AC60F | AC60E |
| Type | 6-Speed Sequential with Paddle Shifters | 6-Speed Sequential with Paddle Shifters | |
| Transfer | System | Part-Time H2 , H4 , L4 | X |
| Type | Switch Type | ||
| Rear Differential Lock | Yes, Automatic Disconnect Differential | X | |
| Brake Type | Front + Rear | Ventilated Disc Brake | Ventilated Disc Brake |
| Brake Control Valve | EBD | EBD | |
| Tire & Wheel | Type | 265/60R18 Alloy | 265/60R18 Alloy |
| Suspension Type | Front / Rear | Double Wishbone / Four Link | Double Wishbone / Four Link |
| Stabilizer Bar | O | O | |
| Cruise Control | O | O | |
| EXTERIOR | |||
| Power Back Door | O | X | |
| Headlamp | Bulb | LED PES | LED PES |
| Leveling | Automatic | Automatic | |
| System | Smart (Auto Operate & Follow-Me) | Smart (Auto Operate & Follow-Me) | |
| Daytime Running Lamps | O | O | |
| Tail Lamps | LED Type | LED Type | |
| High Mount Stop Lamp | LED Type | LED Type | |
| Front Grille | Chrome | Chrome | |
| Front Foglamp | LED | LED | |
| Side-turn Signal | On Outer Mirror | On Outer Mirror | |
| Outer Rear View Mirror | Electric + Power Retractable + Welcome Lamp | Electric + Power Retractable | |
| Door Handle | Chrome | Chrome | |
| Doorbelt Moulding | Silver | Silver | |
| Side-Step | Cover | Silver | Black |
| Mud Guard | Front + Rear | Front + Rear | |
| Air Spats | Front + Rear | Front + Rear | |
| INTERIOR | |||
| Cabin Scheme | Chamois / Black | Chamois / Black | |
| Seat Material | Leather | Leather | |
| Door Trim | Leather / Silver | Leather / Silver | |
| Instrument Panel | Chrome + Silver / Black | Chrome + Silver / Black | |
| Power Door Lock | O | O | |
| Push Start | O | O | |
| Smart Entry | Smart Key with Panic | Smart Key with Panic | |
| Door Handle | Chrome | Chrome | |
| Window Wiper | Front | Time Adjust Intermittent + Mist | Time Adjust Intermittent + Mist |
| Rear | Intermittent | Intermittent | |
| Illuminated Entry System | O | O | |
| Coat Hook | O | O | |
| Shopping Hooks | O | O | |
| Sun Visor | D + P + Mirror w/ Lid and Vanity Lamp | D + P + Mirror w/ Lid and Vanity Lamp | |
| Heater | O | O | |
| Climate Control | Auto A/C | Auto A/C | |
| Side Defroster | O | O | |
| Cool & Hot Box | O | O | |
| Head Rest | Front Seats | Separate, D + P | Separate, D + P |
| Second Row Seats | Separate, 3 | Separate, 3 | |
| Third Row Seats | Separate, 2 | Separate, 2 | |
| Rear Armrest | O | O | |
| Front Seat | Type | Separate / Premium | Separate / Premium |
| Adjustment System | Powered (Driver-side + Passenger-side) (New) | Driver-Seat Powered | |
| Slide Adjustment | Driver + Passenger | Driver + Passenger | |
| Recline Adjustment | Driver + Passenger | Driver + Passenger | |
| Height Adjustment | Driver + Passenger (New) | Driver-Side | |
| Second Row Seat | With armrest 60:40 split , Slide and One-Touch Tumble | With armrest 60:40 split , Slide and One-Touch Tumble | |
| Third Row Seat | 50:50 Space -Up with Recline Adjustment | 50:50 Space -Up with Recline Adjustment | |
| Accessory Connector | 12 V DC | Three Connectors | Three Connectors |
| 220 V AC (100W) | One Connector | One Connector | |
| Steering | Material | Leather stitched with wood | Leather stitched with wood |
| Type | Hydraulic Power Steering | Hydraulic Power Steering | |
| Adjustment System | Tilt & Telescopic | Tilt & Telescopic | |
| Fingertip Controls | Audio, Tel, VR, MID Premium | Audio, Tel, VR, MID Premium | |
| Speedometer | Premium, Optitron | Premium, Optitron | |
| Multi Info Display | Large Colour TFT | Large Colour TFT | |
| Economy Meter | O | O | |
| Infotainment System | Screen | 8" Capacitive Display | 8" Capacitive Display |
| Inputs | DVD, Bluetooth, Memory Card, Screen Mirroring, Voice Recognition, USB, HDMI, Air Gestures | DVD, Bluetooth, Memory Card, Screen Mirroring, Voice Recognition, USB, HDMI, Air Gestures | |
| Navigation | O | O | |
| Speakers | 6 Speakers | 6 Speakers | |
| Wi-Fi | O | O | |
| Rear Camera | O | O | |
| Antenna | Shark Fin | Shark Fin | |
| SAFETY | |||
| Vehicle Stability Control | With HAC + TSC + DAC | With HAC + TSC | |
| Emergency Brake Signal | O | O | |
| Light Reminder | O | O | |
| Engine Oil Leveling Warning | O | X | |
| Shift-Lock System | O | O | |
| Immobilizer | Horn | Horn | |
| Anti-Lock Braking System | O | O | |
| Door Courtesy | Lamp | Reflector | |
| Seatbelt | Front Seats | 3-point ELR x 2 + P/T + F/L | 3-point ELR x 2 + P/T + F/L |
| 2nd Row Seat | 3-point ELR x 3 | 3-point ELR x 3 | |
| 3rd Row Seat | 3-point ELR x 2 | 3-point ELR x 2 | |
| Child-Restraint System | ISOFIX Child Seat Anchors | O | O |

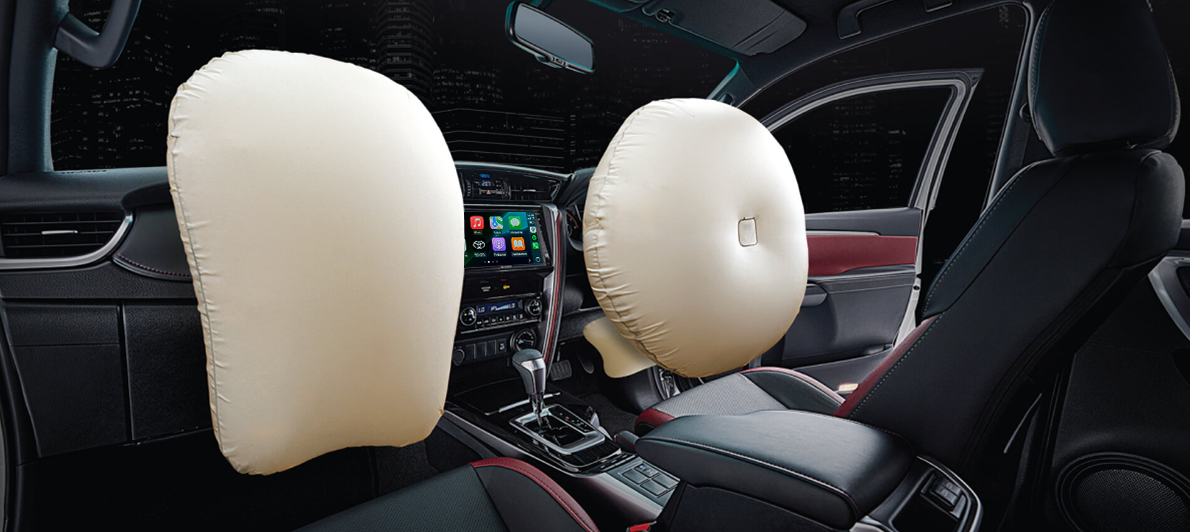

| SRS Airbag | Front Airbag | Dual (Driver + Passenger) | Dual (Driver + Passenger) |
| Knee Airbag | Driver | Driver | |
| On/off Switch | O | O | |
| Airbag Indicator | O | O | |
| O = Available, X = Not Available | |||
| *Indus Motor Company reserves the right to alter any details of specifications and equipment without notice. Vehicles shown and specifications mentioned herein may vary from models and equipment available. | |||
FORTUNER PRICE
| VARIANT | EX-FACTORY PRICE | |
|---|---|---|
| FORTUNER (4X4 Hi) | PKR. 8,649,000/- | |
| FORTUNER (4X2 Hi) | PKR. 7,999,000/- | |
| * THE PRICE IS SUGGESTED RETAIL PRICES, EX-FACTORY KARACHI, PER UNIT INCLUSIVE OF 17% SALES TAX. | ||
| ** THE PRICE IS EXCLUSIVE OF WITHHOLDING TAX. | ||
